48V300AH

48V300AH


The actual system components will be set by final delivery.

This battery system requires the specific Li-ion battery charger. The customer needs to procure separately

It is required to install and operate the system in a indoor environment with temperature about 30~35℃

The system must be charged with the specified  lithium Battery compactible charger

I WANT IT
Inquiry ×
Company:*
Qty:*
Address:*
Shipping Method:*
Demand Time:*
Message:*
Verification Code:*
PRODUCT DETAILS
Production Specification
NoName Model/SpecUnitQty.Note
EP-48V300AH   UPS System includes the folllowing
148V100AH Li-Ion Battery Pack48V100Ahset3

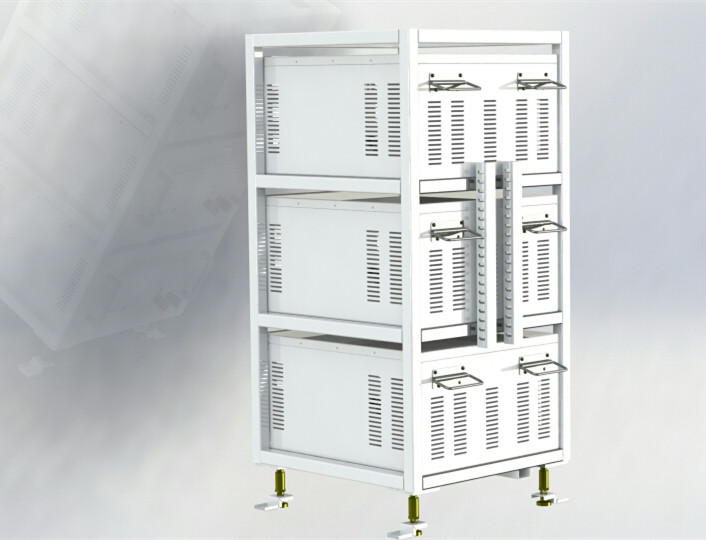

2Battery  Shelf48V-300set1Can   dissemble and reassemble
3Copper Electrode Bars48V-300set1
Note:       1.The actual system components will be set   by final delivery.


2.This   battery system requires the specific Li-ion battery charger. The customer   needs to procure separately

UPS   System Specification
NOItemParameters
1Battery CellBattery Model Lifepo4/3.2v100AH
2Nominal capacity 100Ah
3Nominal voltage 3.2V
4Internal Resistance   (1KHZ AC )0.20.6MΩ
5Operating   Voltage 2.53.65V
6Standard Currents for   Charing and Discharging30A
7Max.Continuous   Discharging current 100A
8Max.Pluse Discharging   Current (long pluse)200A(3min)
9Max.Pluse Discharging   Current(short pluse)300A(10S)
10Weight Approx 3.3kg

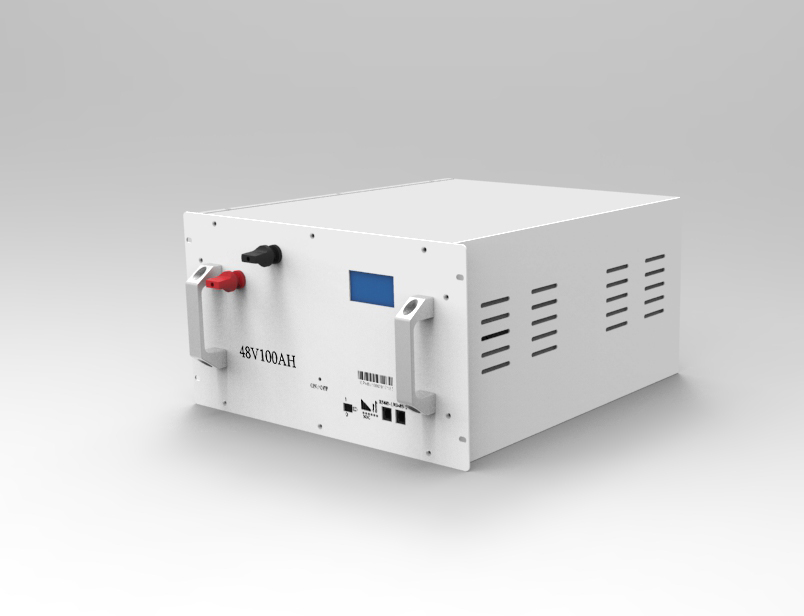

1148V100AH   Battery packNominal   voltage 51.2V
12Nominal   Energy(20±50.3C@100%DOD)  5.12KWH
13Battery   System Configuration  16 serial of single battery cells
14Battery   System Operating Voltage Range 43.2V56.8V
15Floating   Charging Voltage 5354.4V
16System   Maximal Charging Current20A
17System  Maximal Discharging Current80A90A

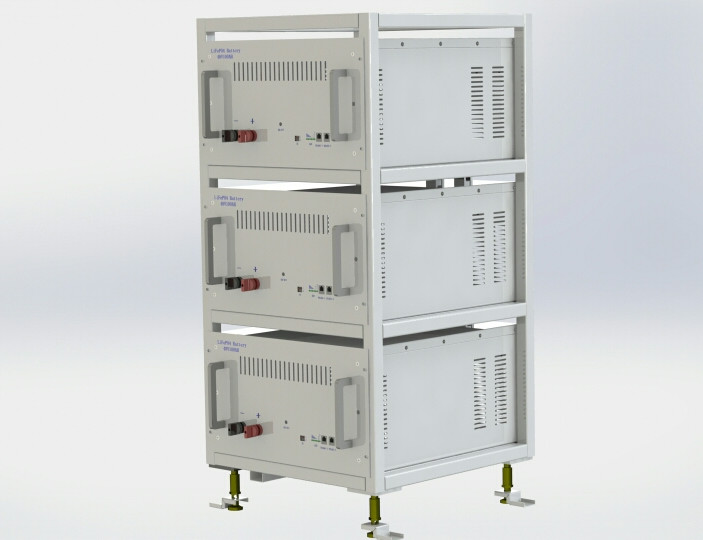

1848V300AH   Battery system Nominal   voltage 51.2V
19Nominal   Energy(20±50.3C@100%DOD)  15.36KWH
20Battery   System Configuration 3   parallel  of 48V100AH packs
21Battery   System Operating Voltage Range 43.2V56.8V
22Floating   Charging Voltage 5354.4V
23System   Maximal Charging Current200A
24System   Maximal Discharging Current240A270A
25Application*Single cells *48V100AH Battery   Pack *48V300AH Battery System Operating Temperature   Range 045
26Recommended Operating   Range of SOC  10%90%
27SOC Requirement for   long period idle and storage 30%SOC
28Short term (1   month)Storage Temperature  20℃~45
29Long  term (1 year)Storage Temperature  20℃~25
30Storage Humidity 70%
31Operating   Humidity 80%
32Insulation Resistance10MΩ
33Communication to   ExternalRS485
34
Cycle Life
≥2000
35Battery warranty 5 Years
Note:1.It   is required to install and operate the system in a indoor environment with   temperature about 3035

2.The   system must be charged with the specified    lithium Battery compactible charger
